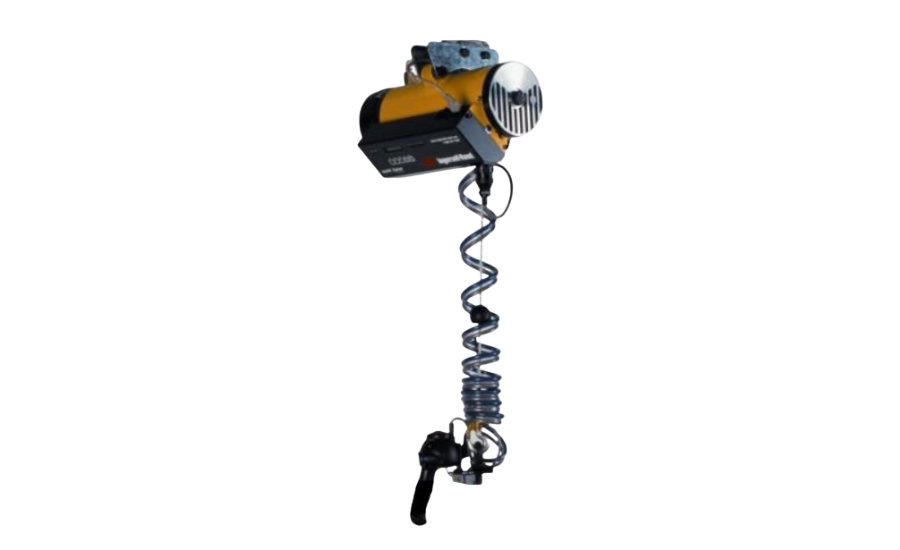

Pneumatic Balancers
Pneumatic Balancers with “force sensing” capability
Force Sensing Series air balancers come standard with a force-sensing load
cell that converts small levels of operator force into up/down movement
through the full lifting range, without the need for up/down pendant controls
which allows the operator to perform fast, quick and easy movements.
These models also come equipped with a 12 ft. (3.7 m) twin-bonded pre-coil
cable including air hose and electronic control hose. The robust design of
these pneumatic balancers gives you continuous duty cycle with minimal
maintenance. These air balancers are intelligent lifting devices built to
enhance your productivity, with stronger and more efficient lifting.
Features that help your facility and its operators:
DURABILITY: Balancers feature all-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook.
SAFETY: The addition of electronic controls allows for integration with limit switches or other safety devices and load cell inputs reduce operator fatigue and provide intuitive motion operation.

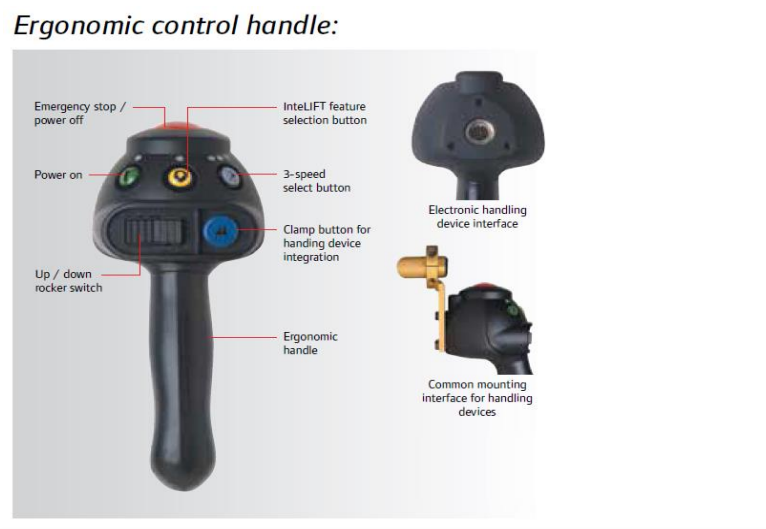

PRODUCTIVITY: The 3-speed selector enables speeds to match each application and operator comfort level. Lifting products can be accomplished without the need to control up and down motion from additional pendant handles.
Multiple modes of operation
• Hoist mode (Lift & Lower)Lift and lower is the default mode allowing the operator precision handling of variable weight loads.
• Float mode and load cell control handle provide the same results; therefore, when programming as an ICW model, float mode will not be available at programming setup.
• Pouring/Dump mode This built-in programming feature allows operators to dump or pour material while maintaining load position
and stability at a constant elevation.
• Smart Drop mode allows for the automatic release of a load by a handling device once the load is lowered and no longer
supported by the unit.

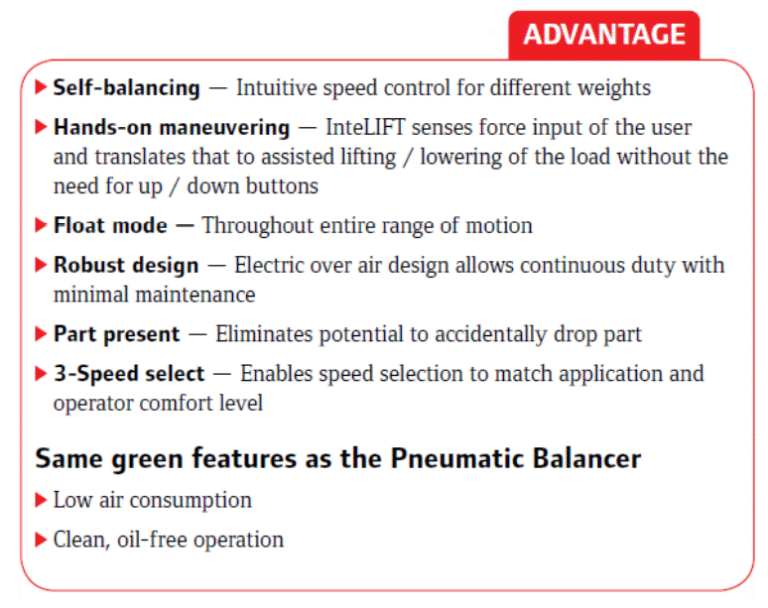

Pneumatic Balancers Features :

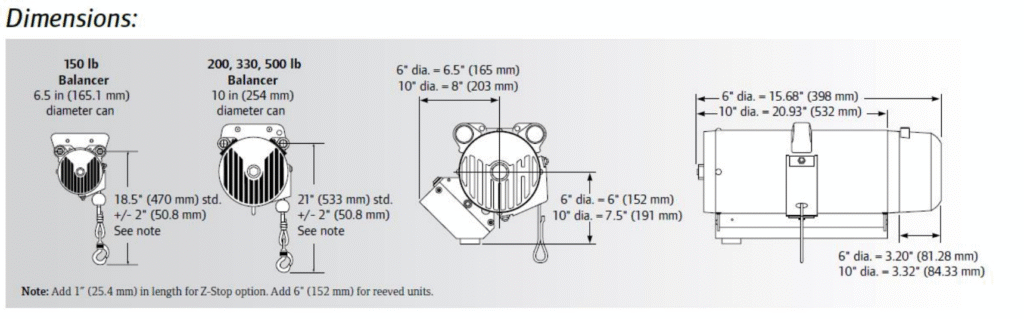

Pneumatic Balancers Specifications:
Error Proof Assembly
The device digitally displays the weight of the part picked up. Device will not allow the operator to move the part if not
clamped properly. The key allows the operator the ability to lock the device. Allows 100 percent visual inspection of the
assembly.
Voltage option:
- 115V 50/60 Hz single phase
- 230V 50/60 Hz single phase
Power cord option:
- 6 ft (1.8m) power cord
Pneumatic Balancers Industries :
Vehicle Assembly
General Assembly
Beverage and Warehouse
Biotechnology
Electronics
Aerospace
