Large Roll and Round Transfer Cart
Powered Transfer Carts for Moving Large Rolls & Round Loads
Large Roll and Round Transfer Cart are an advanced intralogistics solution designed for the safe, precise, and highly efficient transport of loads ranging from 5 tons to 400 tons in industrial facilities. Their free movement on the ground eliminates the need for rail systems and allows for more flexible planning of production flows.
These vehicles offer high operational flexibility with options such as remote control, operator platform, or autonomous control. Ergonomic control interfaces and safety sensors enhance operator comfort while minimizing the risk of collisions. Integrated collision avoidance systems, visual and auditory warnings, and speed limiting modes ensure maximum safety in the work area.
The top deck structures are fully customizable according to the shape and size of the load. A wide range of configuration options are available for loads with different geometries, such as molds, modules, steel structures, transformers, or heavy production equipment. Functional additions such as self-adjusting positioner integration for welding processes or hydraulic lifting systems are also offered as options.
FTC models, which can be equipped with vulcolan, polyurethane, or high-strength special wheel options suitable for different ground conditions, provide safe and smooth movement on flat surfaces, painted surfaces, or areas where the risk of deformation is high under heavy loads.
Standard steering options include front/rear steering, front-only steering, and axle steering. For installations requiring greater maneuverability, optional rear-wheel steering or rear axle pivot steering are available.

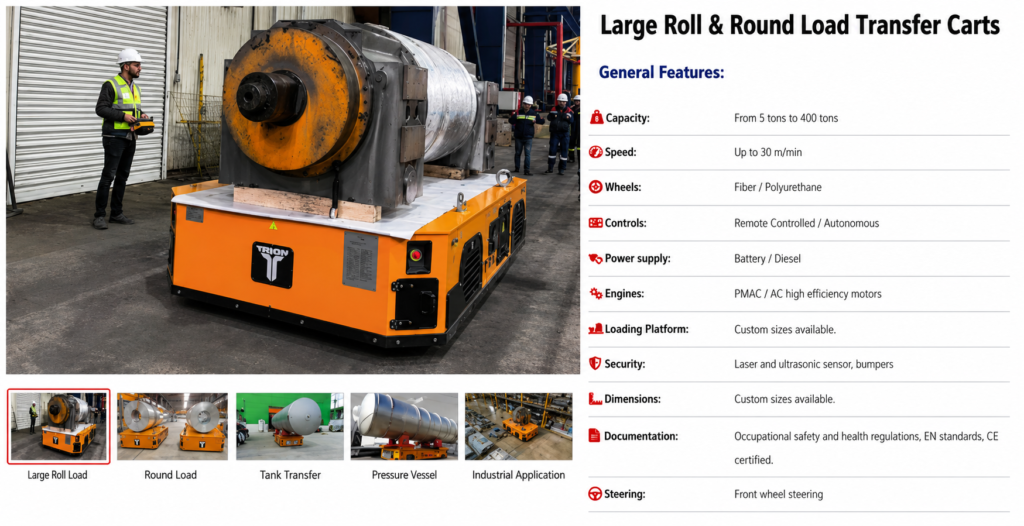

Large Roll and Round Transfer Cart Technical Specifications
General Features of Large Roll and Round Transfer Carts
- Capacity: From 5 tons to 400 tons
- speed: Up to 30 m/min
- Wheels: Fiber / Polyurethane
- Controls: Remote Controlled / Autonomous
- Power supply: Battery / Diesel
- Engines: PMAC/AC high efficiency motors
- Loading Platform: Custom sizes available.
- Security: Laser and ultrasonic sensor, bumpers
- Dimensions: Custom sizes available.
- Documentation: Occupational safety and health regulations, EN standards, CE certified.
- Steering:Front wheel steering
Reliable Large Roll and Round Transfer Cart Solutions
Large Roll and Round Transfer Carts provide a flexible and efficient solution for industries that require safe transportation of heavy rolls, coils, drums, pipes, and other cylindrical or round loads. With customizable designs, advanced safety systems, and advanced drive and steering technologies, these transfer carts help improve production efficiency while reducing handling risks.
Whether you need a battery-powered, diesel-powered, remote-controlled, or autonomous transfer solution, our engineering team can design a system tailored to your specific operational requirements.
Contact us today to discuss your heavy load transportation needs and find the right transfer cart solution for your facility.
Call us today
Request a quote
Speak with an engineering specialist
Frequently Asked Questions
These Large Roll transfer carts enable the transportation of heavy rolls or any round load within factories or on-site areas without the need for fixed rail infrastructure. It is preferred in facilities with variable production lines, flexible route requirements, and those that do not want to invest in infrastructure. These vehicles offer controlled driving, high maneuverability, and safe load transfer.
These transfer carts are not an off the shelf product; they are manufactured entirely according to the client’s needs . Capacity, platform dimensions, drive system, and safety equipment are determined by engineering calculations according to the tonnage and dimensions of the load that is to be transported, the ground structure, and the frequency of use. This ensures an optimal long-lasting solution for each project.
The procurement process begins with an analysis and technical survey of your load and handling task. Following this, ASE manages the project-specific design, manufacturing, testing, and commissioning phases. Post-installation technical support, maintenance, and spare parts services ensure the sustainable operation of the system.
