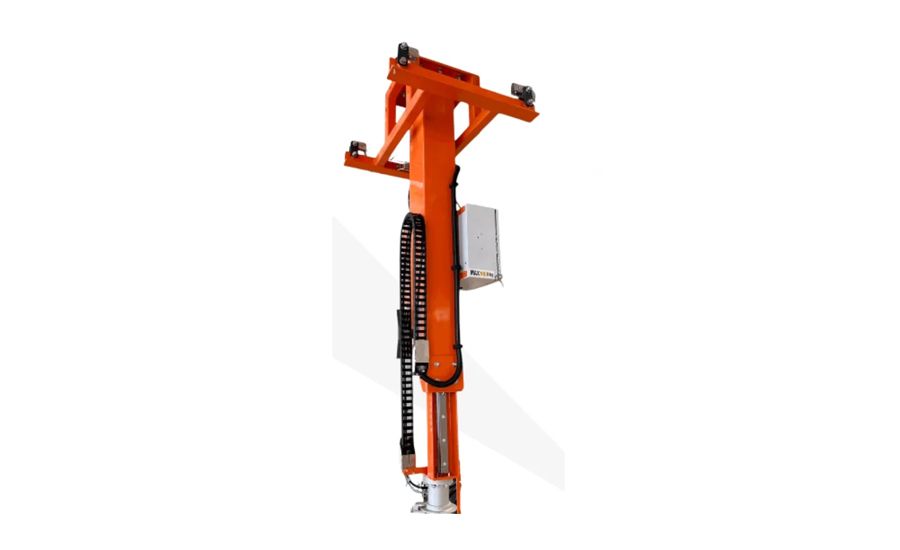

Linear Manipulators
Precision Linear Manipulators for Efficient Heavy Load Handling.
Linear Manipulators is the ideal solution for vertical handling of products and components that require precision manipulation and ease of movement. Featuring a linear-guide movement, this system ensures perfectly aligned vertical travel, eliminating oscillations and delivering millimetric control during picking and positioning operations. It is capable of handling large and heavy loads with exceptional accuracy and maneuverability.
When mounted on overhead rails, the Linear can cover wide working areas with remarkable agility. The sliding structure, combined with active pneumatic balancing, effectively cancels out the weight of your products, enabling the operator to move bulky items along extended production lines with minimal physical effort and smooth travel from the pick-up point to the drop off point.
The Linear can be configured for different production environments—metalworking, sheet-metal processing, industrial assembly, heavy-component handling—and offers a reliable choice even for intensive cycles thanks to its robust structure and minimal maintenance.
Each Linear manipulator is a customized solution integrating tailor-made gripping tools, optimizing your plant layout and improving the ergonomics of your handling processes.
Linear Manipulator
Click below to see demonstration videos
of Linear Pneumatic Manipulator
- Overhead fixed position
- Overhead, under-hung attached to enclosed track railsystem
- Mount to your building column or wall mount position
- Increased productivity
- Superior control & manipulation
- Safe handling of heavy & awkward loads
- Lower labor costs
- Specialized training is not needed
- Gender friendly operation
- Decrease operator fatigue
- Safeguards delicate loads
- Multiple axes of manipulation
- Precise placement
- Float mode capability
- Pneumatic overload circuitry
- Reach in, under & around obstacles
- Easy function controls
- Powered & manual gripping
- Vacuum cup
- Magnetic
- Expanding mandrel
- Multiple combinations
- Customization for your requirement
- Automotive assembly (engines, transmissions, chassis &interior components)
- Aerospace (progressive assembly lines)
- Heavy equipment manufacturing
- Defense contractors
- Tool & die swap outs
- Modular home, shelter & building manufactures
- Natural gas & oil industry (valves, drilling components, etc.)
- Clean room
- Repetitive lifting jobs
- Parts assembly
- Food manufacturing & related supply industry
- Machining
- Process equipment maintenance
- Many more…
OD Gripper
Fixed Tooling
Expanding Mandrel
Custom Controls
Unbalanced Loads
Vacuum Lifting & Rotating
Enhanced Precision Positioning
The Linear Manipulator provides smooth, guided vertical movement with exceptional positioning accuracy, making it ideal for handling heavy, bulky, or delicate components in precision manufacturing environments.
Improved Ergonomic Performance
Active pneumatic balancing helps reduce operator effort by minimizing the force required to lift and position loads, improving comfort and reducing fatigue during repetitive material handling tasks.
Expanded Workspace Efficiency
When integrated with overhead rail systems, the Linear Manipulator enables efficient movement of materials across large production areas while maintaining precise control throughout the lifting process.
Flexible Tooling Solutions
Designed to accommodate a wide range of standard and custom gripping tools, the Linear Manipulator can be configured to meet the specific requirements of metalworking, industrial assembly, sheet-metal processing, and other material handling applications.
Reliable Performance for Continuous Operation
Built with a robust mechanical design and low-maintenance construction, the Linear Manipulator delivers dependable performance for demanding production environments and high-cycle manufacturing operations.
