Multi-Purpose Load Handling Machines
Lifting equipment designed for workplace safety and efficiency

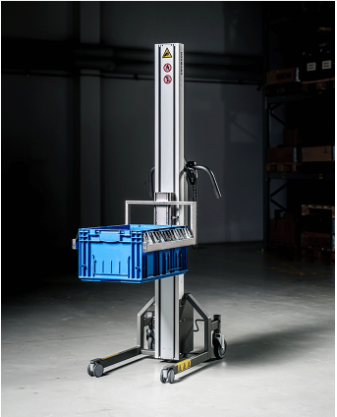

Impact Series Lifters
Our most flexible line of lifters, made of aluminum and steel, which are extremely resilient, but at the same time surprisingly lightweight and easy to use.
| Capacity | Lift Height | Lift speed | Weight |
|---|---|---|---|
| 286-lbs | up to 109” | 5”per sec | Up to 53-lbs |

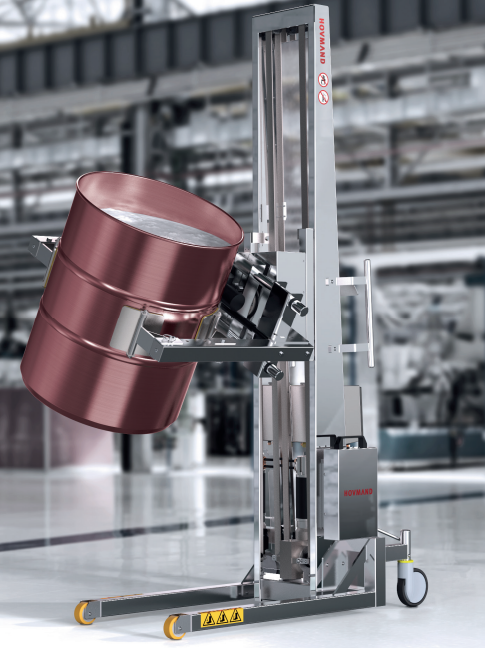

Inox Series Lifters
Same high-quality construction as the Impact series but all parts of the Inox series lifters are stainless steel, which makes Inox perfectly suited for the pharma and food industries, where the requirements are extra high.
| Capacity | Lift Height | Lift speed | Weight |
|---|---|---|---|
| 661-lbs | up to 100” | 8”per sec | Up to 253-lbs |
Our Multi-Purpose Lifters
These hard-working lifters provide consistency, long-lasting performance, and user-friendly controls. They speed up material handling activities and ensure safe, ergonomic lifting for anything from plastic totes, reels, and corrugated boxes to buckets, barrels & drums and a whole lot more.
Why Use a Multi-Purpose Lifter?
Choosing a lifter is more than just getting a tool – it’s an investment in efficiency, safety, and ergonomics:
- Reduces physical strain on workers
- Increases productivity and workflow efficiency
- Designed to fit a wide range of industries and lifting needs
Key Features
Our modular system allows you to mix and match components to create the ideal lifting solution:
- Customizable legs for stability.
- Adjustable mast heights to fit different lifting requirements
- Various lifting capacities to handle different weights
- Designed for a wide range of applications
This improves your workflow and makes material handling more efficient and ergonomic than manual handling.
Built for Efficiency
Experience the perfect blend of strength and lightness. Made from aluminum and steel, our Impact lifters are:
- Extremely resilient yet lightweight
- Easy to maneuver in tight spaces
- Durable and long-lasting
Safety and Durability
Our Impact lifters are built for heavy-duty use, ensuring both safety and reliability:
- Effortlessly lifts objects up to 200 kg (~441 lbs)
- Built to withstand sudden forces and minor collisions
- Requires very little maintenance
Safety Features Include:
- Overload protection to prevent excessive strain
- Safety clutch for controlled lifting
- Soft start function for smooth and safe operation

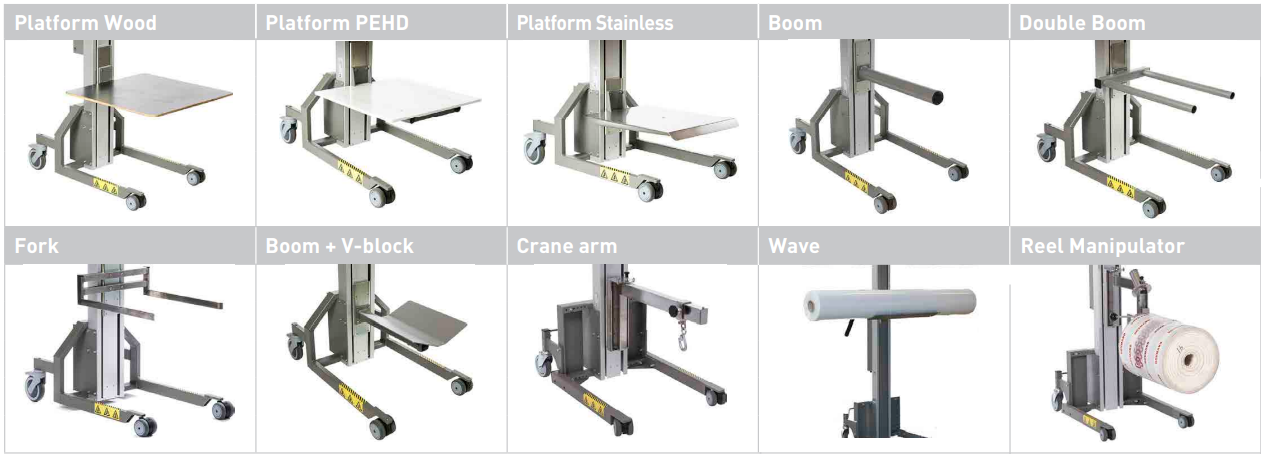

Available Tooling
- Single shaft
- Double boom
- Fork
- V-deck
- Crane arm
- 90° V-deck
- Reel rotator
- Stainless platform
- Composite platform
- Wood platform

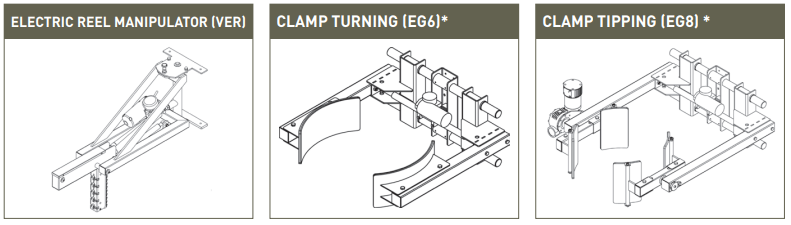

- Electric roll turner
- Clamp turner tooling
- Clamp & Tip tooling

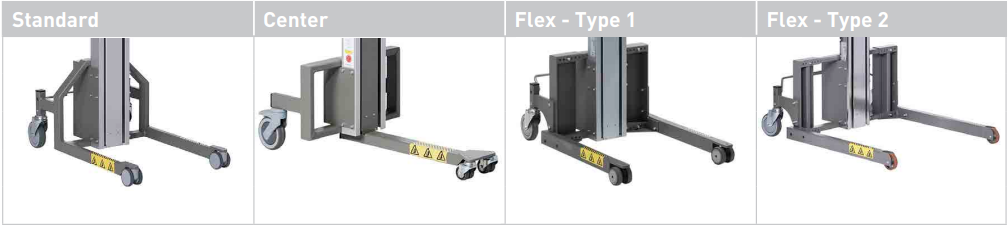

Available Leg Configurations
- Standard
- Center
- Flex – type 1
- Flex – type 2
Wheels
Standard (leg length 500 mm):
- Front wheels, double swivel Ø75 mm
- Rear wheels, swivel Ø125 mm with central brake
Center (leg length 450 or 600 mm):
- Front wheels, double swivel Ø50 mm
- Rear wheels, swivel Ø125 mm with brakes
Flex (leg length 500, 650 or 850 mm):
- Front wheels, double swivel Ø75 mm or Ø50 mm, fixed Ø80 mm
- Rear wheels, swivel Ø125 mm with central brake
